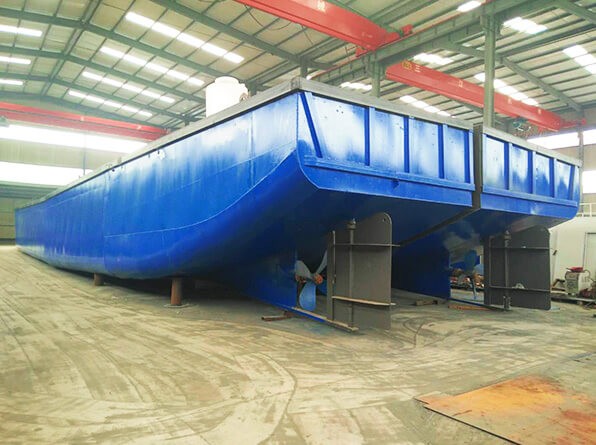

1000T Deck Barge

Total length: 55.0m
Total width: 10.6m
Moulded depth: 3.6m
Full load displacement: 1700T
Load capacity: 1000T
Design full load draft depth: 3.0m
Rated deck load: 6T/㎡
Get A Price Now! Chat Online Product Video

Description Parameter Related Products Get In Touch


Parameter

ItemDeck bargeNote
Main dimensions and parametersTotal length55.0m　
Overall length48.0m　
Total width10.6m　
Moulded depth3.6m　
Full load displacement1700T　
Load capacity1000T　
Design full load draft depth3.0m　
Rated deck load6T/㎡　
Design no-load draft depth1.5m　
Transit deck length7.0m　
Floating body materialsbaseboard10mm　
Side plate8mm　
Deck10mm　
Main channelL6x60x4406mm thickness steel plate is bent
Rider keelL6x75x50Unequal angle steel
Keel spacing60cm　
Plate materialCCSA Marine board　
Propeller(2 sets)blade diameter1500mm　
Equipped with mainframe powerManufacturer Weichai Marine
ModelX6170ZC-05
Power300kw
Rotation speed1000r/min
Control roomLength4.2mThe upper and lower layers are designed to effectively save the usable area. Wall color is white, material is steel, door window is  aluminium alloy sliding type
Width3.4m
Height2.0m
Crew loungeLength4.2m
Width5.0m
Height1.8m
Driving speedNo-load11 sea mile/hour　
Full load9 sea mile/hour　
Big anchor　2pcs1000kg
Marine positioning and communication systems Ship radarFURUNO M 18351 set
High frequency intercomEHF MAINE IC-M3241 set
Hand-held high frequency interphoneIC-M232 sets
Anchor winch: 2 sets
Total power: 660kw
Generator set: 50kw 2 sets
Steering operating system: Hydraulic transmission
Fuel consumption of equipment(full speed): about 60L/h
Total weight: about 280 ton
Production period: 60 working days
