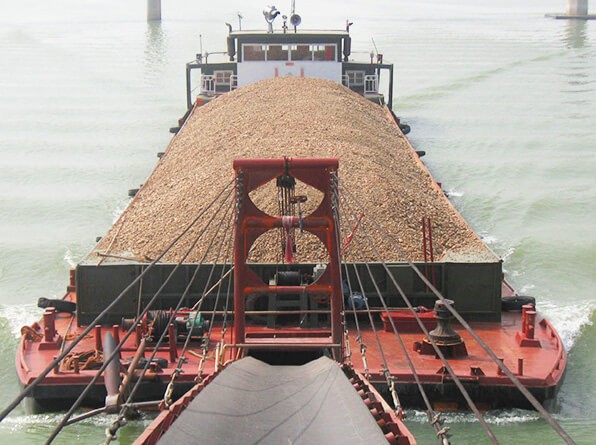

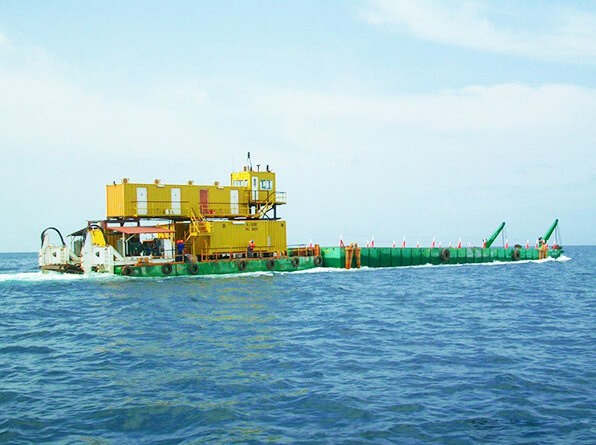

1500T Deck Barge

Total length: 61.3m
Total width: 15.0m
Moulded depth: 3.1m
Light load draft: 1.5m
Load draught: 2.5m
Rated capacity: 1500ton
No-load speed: 11Kts
Running speed loaded: 9Kts
Deck load: 6T/㎡
Get A Price Now! Chat Online Product Video

Description Parameter Related Products Get In Touch


Parameter



Equipment name Flat steel self-propelled barge  　
Equipment model YS-1500 　 　
Main dimensions Total length 61.3m 　
Total width 15.0m 　
Moulded depth 3.1m 　
Performance  Light load draft  1.5m 　
Load draught 2.5m 　
Rated capacity 1500ton 　
No-load speed 11Kts 　
Running speed loaded 9Kts 　
Deck load 6T/㎡ 　

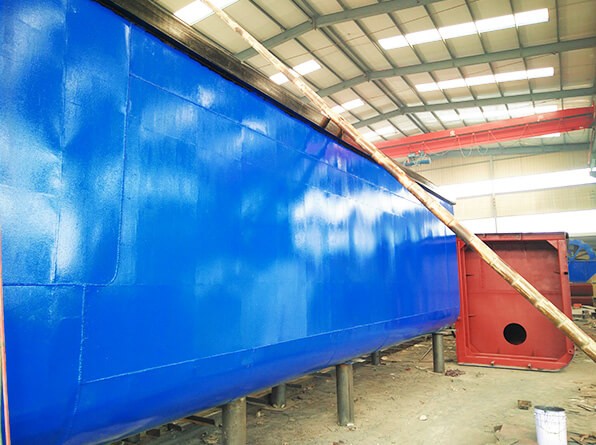

Floating body materials Length 61.0m Q235 steel C 0.14~0.22% Mn 0.30~0.65 Si≤0.30 S≤0.050 P≤0.045
Width 14.8m 　
Height 3.1m Anti-rust treatment, 2 layers of epoxy zinc-rich primer, 1 layer of curing agent, 1 layer of epoxy zinc-rich surface paint.
Material Side plate  8mm 　
Baseboard  10mm 　
Deck  12mm 　
Floating body connection Field welded connection 　
Control room Length 3.0m Wall color is white, control room top is white, material is steel, door window is aluminium alloy sliding door window.
Width 2.6m
Height 2.0m

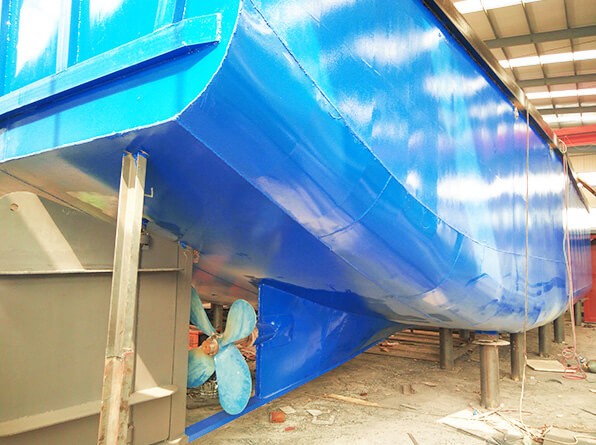

Propeller(2 sets） Type SJ-1500 　
Diameter of paddle 1500mm 　
Matching gear box HANGZHOU Gear400 　
Matched Main Machine TypeKTA19-M CUMMINS
output power  339kw
Speed 1744r/min
Big anchor Quantity 3pcs bower anchor 2pcs，stern anchor 1pcs
Anchor winch 2sets Reduction box ZQ650 electromagnetic brake， fore body 1set，stern 1 set
Electromotor 15kw 　
Marine signal light Whole set 　 　
Marine positioning and communication systems Ship radar FURUNO M 1835 1set   FURUNO
High frequency intercom EHF MAINE IC-M324 1set
Hand-held high frequency walkie-talkie IC-M23 2sets
Generator set  50kw 　 　
Fire extinguisher  Dry powder extinguisher  5sets 　
Gross weight of equipment  About 410 ton 　 　
Equipped with total power 710kw 　 　
Equipment oil consumption Full speed About 68 liters per hour 　
Delivery time 80 working days after receiving 30% downpayment
