Foundation Free Concrete Batching Plant

Model: MHZS25 MHZS40 MHZS50 MHZS60

Discharge height: 3800mm

Max. hauling speed: 40km/h

warranty: 13months after commissioning

Max. aggregate dia.: 80mm

Aggregate weighing precision: ±2%

Aggregate feeder: Belt conveyor

Description

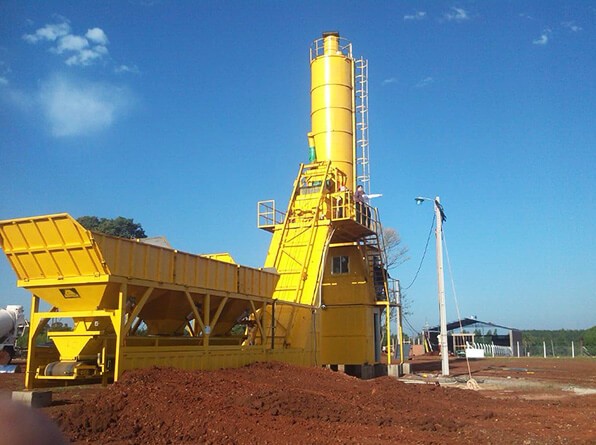

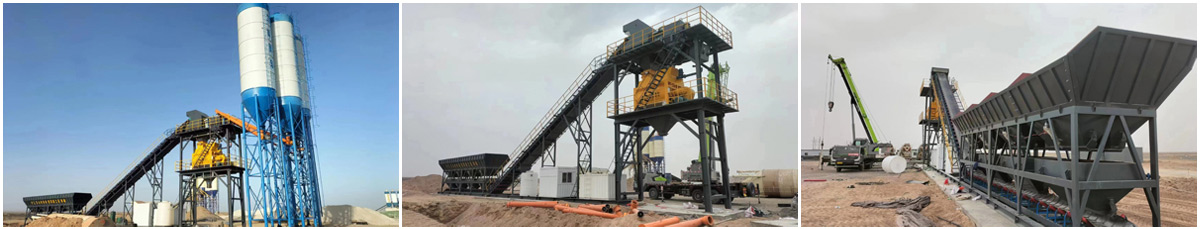

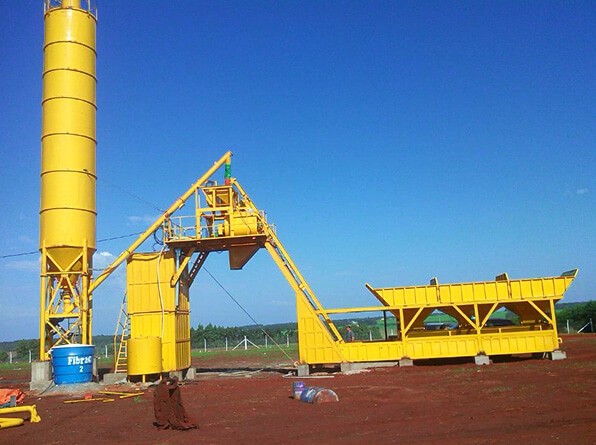

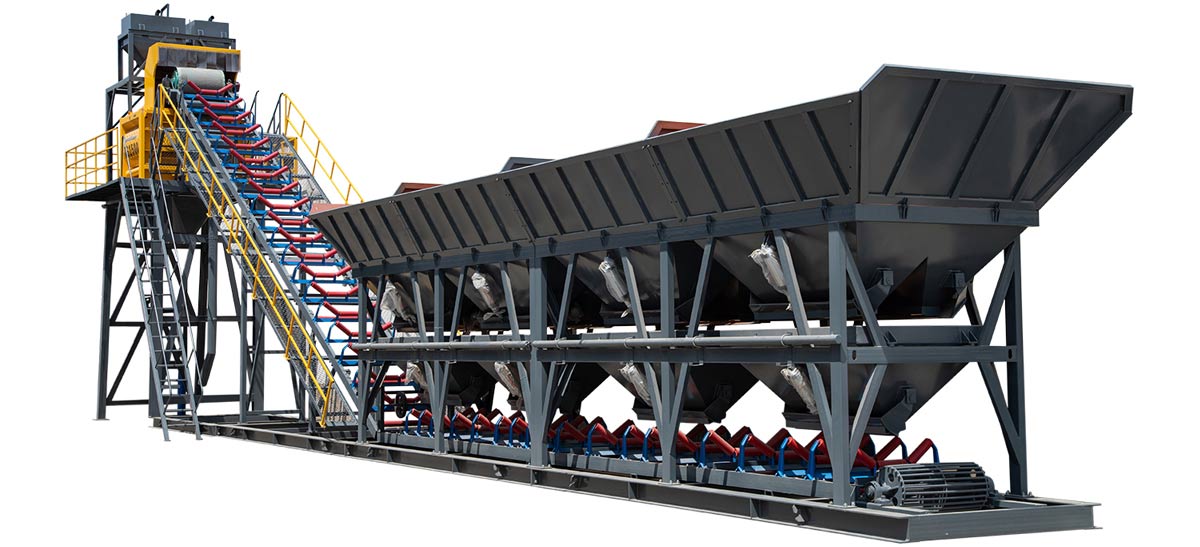

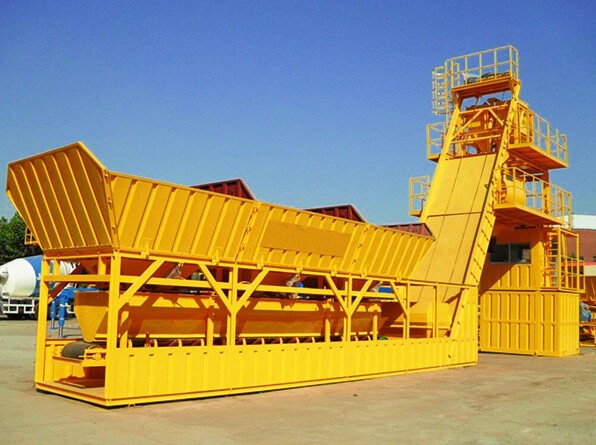

FOCUS foundation-free concrete batching plant, also known as base-free plants, is an updated compact/modular type batching plant, similar to FOCUS mobile type concrete batching plant yet has even faster assembling/debugging mechanism.

There is no wheels and pulling mechanism, but foundation-free plants has different and fastly-assembled modular, hence it’s even faster to be put into operation-only a piece of solid and flat soil is required.



To sum up, FOCUS foundation-free concrete batching plant has advantages as follows:

01

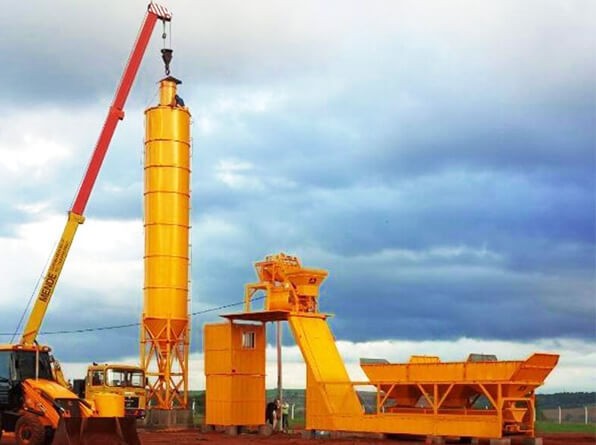

With modular structure, installation and disassembly are rapid, and transportation is convenient. With a variety of layouts, it can adapt to the requirements of different venues.

02

The mixing machine adopts JS500/JS1000/JS1500 twin-shaft forced concrete mixer, which has good mixing quality and high productivity. It can achieve good stirring in the ideal time for dry hard, semi-rigid, plastic and various proportions of concrete.

03

All metering elements and control elements of the metering unit adopt imported components and are controlled by a microcomputer to ensure accurate measurement and stable performance.

04

All powdered materials, from feeding, batching, metering, feeding to stirring and discharging, are carried out in a closed state. High-quality dust collectors are used in the main mixing building, and the main building and the belt conveyor are closed and greatly reduced. Dust and noise pollution to the environment, environmental protection performance is good.

05

Each repair and maintenance site has a platform or ladder, host cleaning with high pressure pump cleaning device, maintenance performance is good.

06

The whole machine adopts a dual computer control system. When the two machines are switched, the automatic guarantee system without any influence can continue the production control. Dynamic panel display clearly understands the operation of each part. Intuitive monitoring interface can clearly and accurately observe the on-site workflow. Can print report management.

07

Electronic control system components use imported components, the overall performance is stable and powerful. Abnormal conditions and automatic fault detection, using text, sound, light, alarm tips and troubleshooting.



Parameter
Model MHZS25 MHZS40 MHZS50 MHZS60
Output capacity 25m³/h 40m³/h 50m³/h 60m³/h
Overall power 40kw 60kw 85kw 105kw
Discharge height 3800mm
Max. hauling speed 40km/h
warranty 13months after commissioning
After-sale service Guidance on erecting, commissioning and operator training, 24/7 technical assistance afterwards
Concrete mixer JS500 JS750 JS1000 JS1000
Motor power 18.5kw 30kw 18.5x2kw 30x2kw
Max. aggregate dia. 80mm
Aggregate batcher PLD800 PLD1200 PLD1200 PLD1600
Aggregate weighing precision ±2%
Aggregate feeder Belt conveyor
Other scale scope Cement ±1%
water ±1%
additive ±1%
Control system Auto computer control, 1 set
Pneumatic system 1 set
