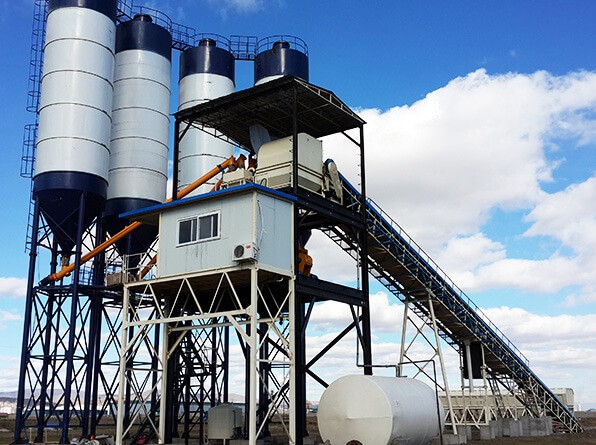

HZS100\120 Stationary Concrete Batch Plant

Description

This concrete batching plant is Focus’ newly developed products on its many years' experience of producing concrete mixing equipments combined with international top technology and advantages and techniques of advanced machine types both in China and abroad in recent years. It is the only product in the same field in China that achieves domestic leading level in general index and achieves international advanced level in such aspects as high productivity, noise control, environmental protection, etc. Thus it was chosen as one of the NATIONAL KEY NEW PRODUCTS in 2006.

Main features of this ready-mix concrete plant:

01

Concrete batcher can be designed as underground, partially underground or fully-above ground, 3-6 hoppers are pneumatically controlled by computer with fast and accurate instruct, whole job can be done in separate or accumulative models.

02

Aggregate belt conveyor is truss-framed for easy assembly, inclination angle is normally less than 20 degrees, however, it can be up to 45°by adopting through(groovy) belt when the ground area is limited.

03

Dust collection system mainly aims at dealing with dust generated in the process of loading the mixer and pumping powder into the powder tank, all in closed state.

04

Adopting twin-shaft compulsory concrete mixer, it mixes evenly and rapidly, achieving good mixing effect for all kinds of dry, semi-dry and plastic concrete.

05

UPS, stable performance Siemens PLC, high speed and precision weighing unit module combined with our professional control and monitoring software.

06

Full automatic and easy operated production process of material measurement, transfer, mixing and discharging.

07

Compact-structured planetary gear was adopted to ensure smooth, speedy and efficient transmission.

08

Three-point suspension sensors equipped to guarantee accurate and fast powder and liquid weighing.

09

Heating system and ice plant could be adopted into this plant in severely cold and hot environment.

Parameter

Be Noted:

1. Please ask detailed configuration from our sales reps;

2. The power figure doesn't include the power of cement silo and screw;

3. Non-standard design could be made according to clients' demand;

4. The above-mentioned data could be changed due to the technical&design upgrade, please check the updated parameter when purchasing.
