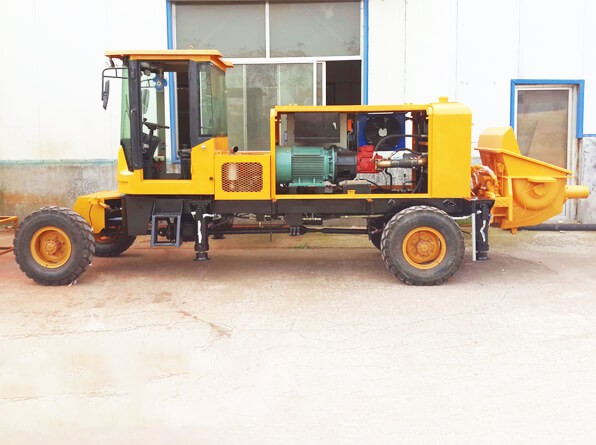

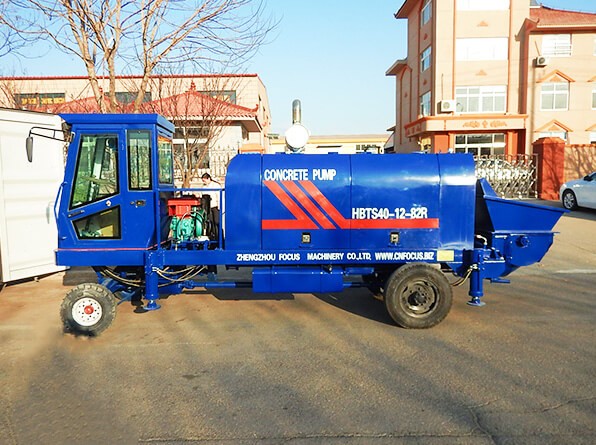

Self-walking Concrete Line Pump
Max. theo. concrete output (L./H.): 40/26 m3/h
Max.concrete pumping pressure (H. /L.): 12/7.6 MPa
Distribution valve type: S Valve
Concrete cylinder diameter×stroke: Ф180×1300 mm
Hopper capacity×feeding height: 400×1100 L×mm
Outlet diameter: Ф150 mm

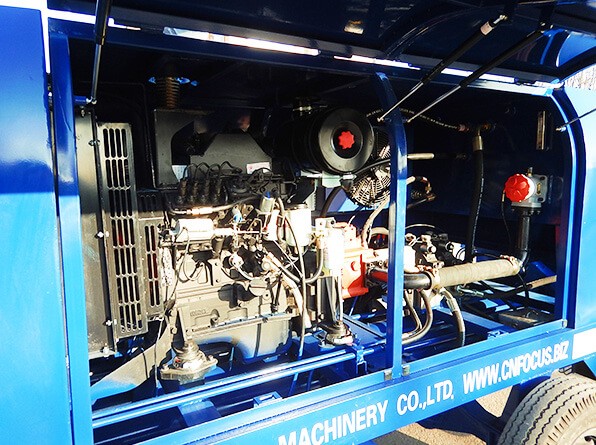

FOCUS Self-walking Line Pump adopts 32HP engine/5 gears/driver's cab for driving mechanism, boosting characters as follows:
Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components’ life is prolonged greatly. This is convenient for judgeing and removing trouble.
Large valve changing direction, makes the main pumping loop quick response, small leakage, good stability, high reliability and high resist contaminative capability.
Hydraulic system has safe relief protection, at the same time, when the system pressure is over, the main oil pump cutting device makes itself be protected reliably.

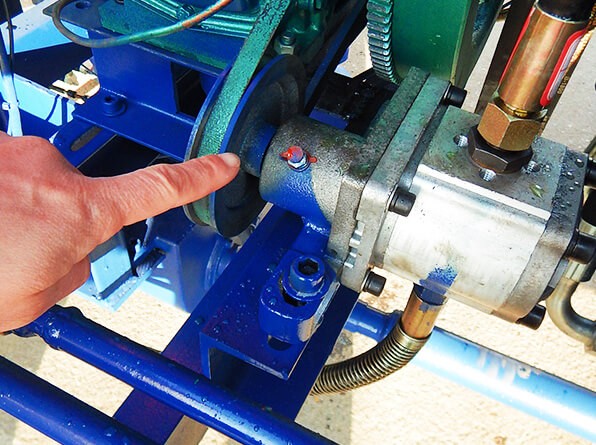

Distributing hydraulic circuit adopts constant pressure pump, which can provide strong distributing pressure and economic energy control.
Cone sealing of all pipes make the pipe joints seal reliably.
The high-low pressure switch adopting cartridge valve of reduces the trouble of dismantling and installing the oil pipe.
Adopt emulsification technology of initiative and passivity recovery integration.
The design of hopper and S valve and so on adopt Ｉ－DEAS software to calculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.

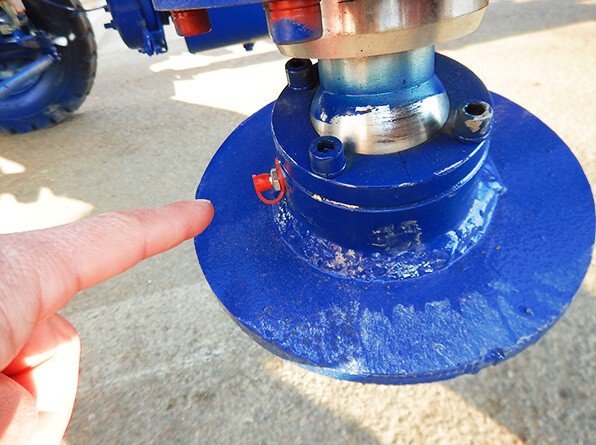

The agitator has unique form, which separates the hydraulic motor from agitator bearing pedestal. At the same time, adopting large displacement motor ensures that the agitator moment is big enough.
Make sure the pumping is good and decline the phenomenon of pipe jam, the spectacles wear plate and cutting ring should be used in lower abrasion. FOCUS spectacles wear plate and cutting ring use high wear material, making the components’ life prolonged greatly.
The hydraulic circuit will take high oil into double distributor, and then the lubricating part can obtain hydraulic oil. It ensures the lubrication of the concrete cylinder’s piston and other parts and prolongs the life of piston and other sealing knits.
The radiator equipment makes the working oil temperature of hydraulic system below 70℃ and makes the machine in normal status.
|Whole performance of machine||Max. theo. concrete output (L./H.)||m3/h||40/26|
|Max.concrete pumping pressure (H. /L.)||MPa||12/7.6|
|Distribution valve type||S Valve|
|Concrete cylinder diameter×stroke||mm||Ф180×1300|
|Hopper capacity×feeding height||L×mm||400×1100|
|Power system||Diesel engine model||WP4G110E220|
|Electrical engineering power||kW||82|
|Hydraulic system||Circuit type||Open circuit|
|Pumping system pressure||MPa||31.5|
|Mixing system pressure||MPa||6-8|
|Capacity of oil tank||L||370|
|Concrete delivery distance (horizontal/vertical)||m||160/500|
|Other parameters||Max. aggregate diameter||mm||Scree:30/40|
|Inside diameter of delivering pipe||mm||Ф125|
|Tractor head||5 gears, 32HP with driver’s cab|
